axe.io is an open source USB/MIDI foot controller based on the popular Arduino platform.
axe.io is an open source USB/MIDI foot controller based on the popular Arduino platform.

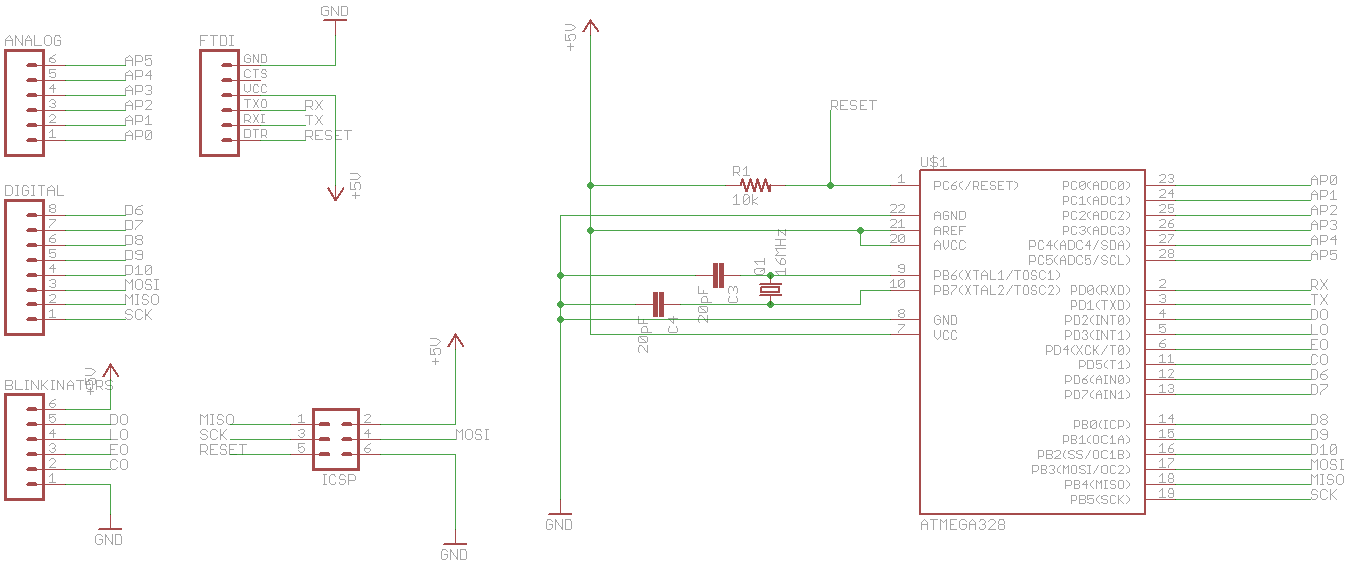

Thinkinator is a stripped-down Arduino-style board with headers for connecting a string of Blinkinators and also providing headers for the remaining digital and analog pins (some of which will be connected to buttons).
The board has no on-board serial or USB chipset, but provides a 6 pin header so that a small serial break-out board can be used if required. A 6 pin AVR ICSP header is also provided for re-programming if required.
The board also provides space for a USB socket to be connected to provide power and connectivity to your compute. If you plan on using the USB port then you probably want to hack a cheap USB-to-MIDI cable onto the USB header.

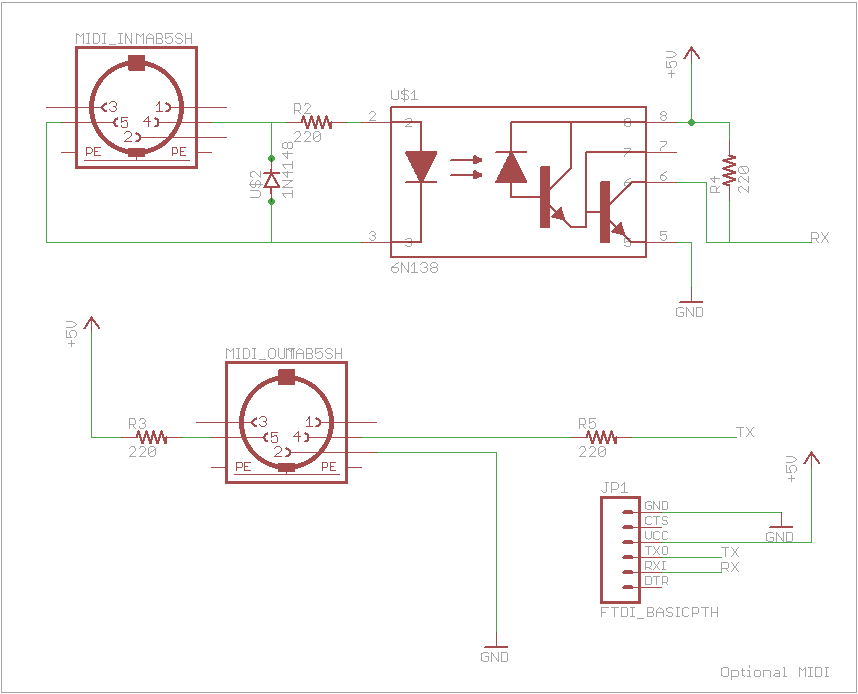

There is also an optional MIDI expander which provides room for two 5 pin DIN connectors to be attached and used instead of the USB port.
Downloads:

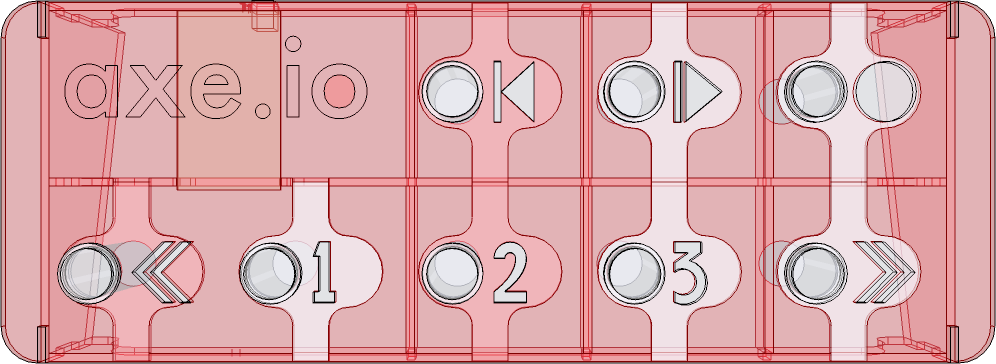

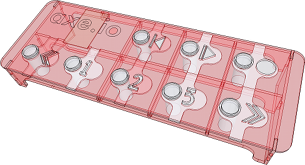

8 button foot control ideal for live or studio use with 3 button DAW recording control, next and previous patch as well as three assignable buttons.

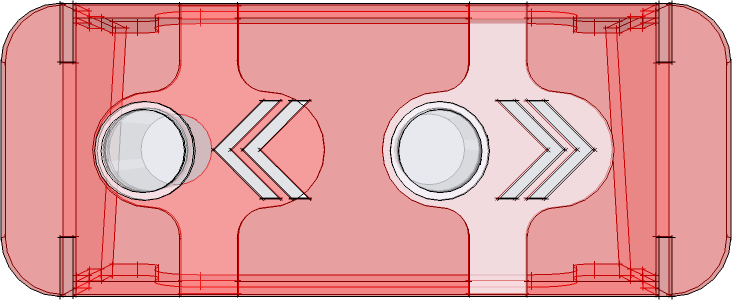

2 button, ultra portable foot controller ideal for live performances with next and previous patch buttons.
Bare-minimum Arduino-style board which is the brains of the operation.
A small board along the same lines as the Macetech ShiftBrite used to drive button illumination and read button state.
